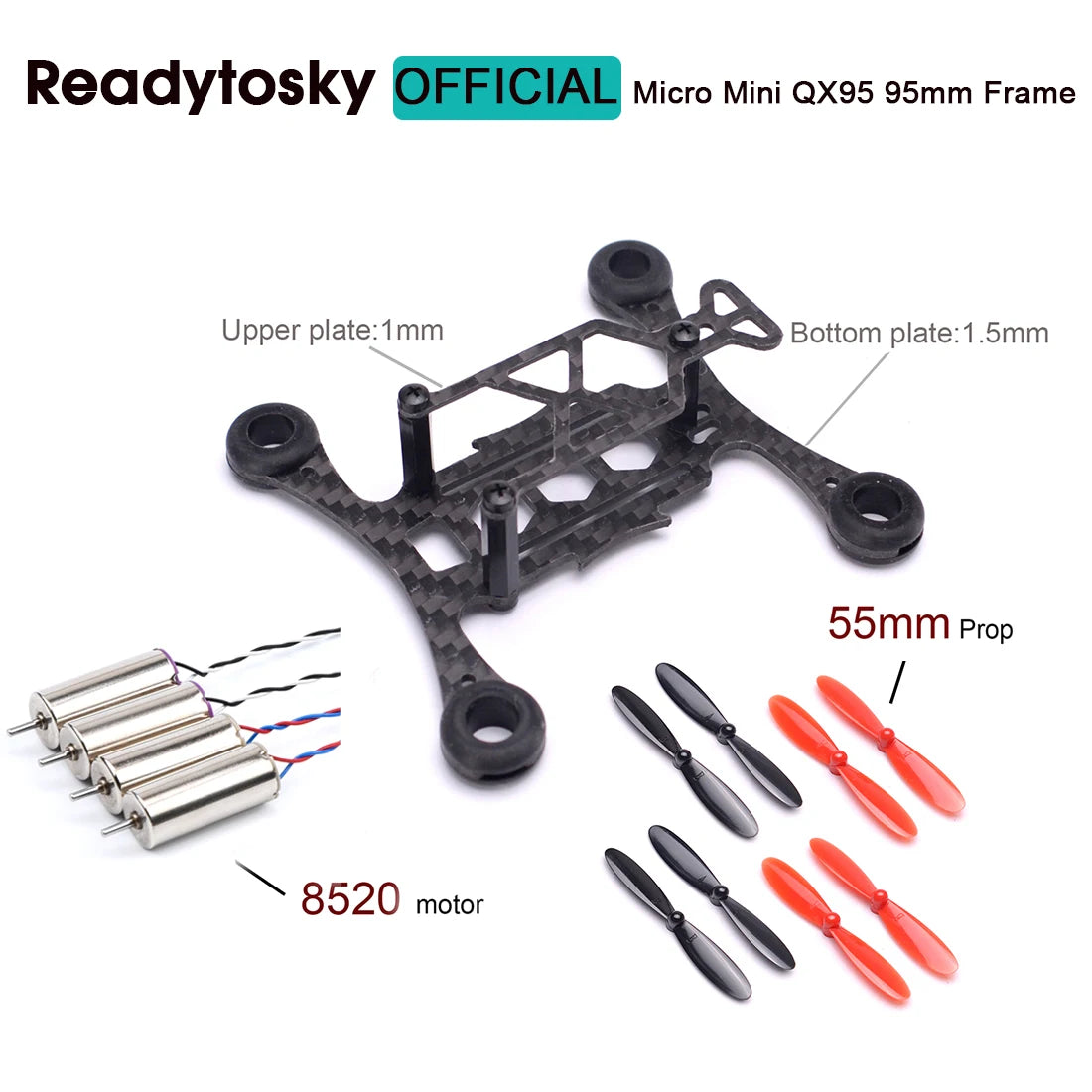

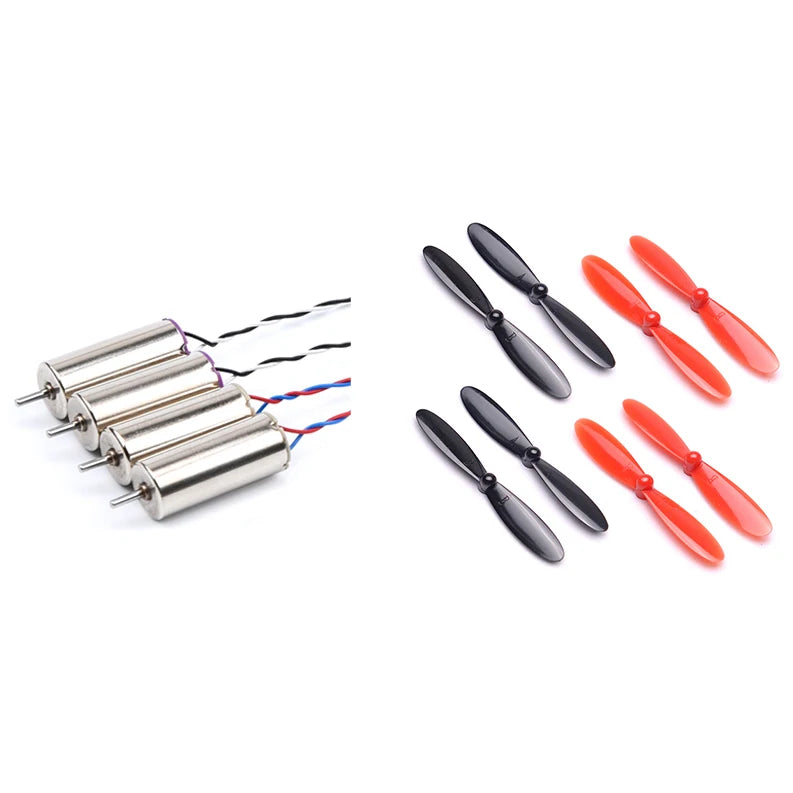

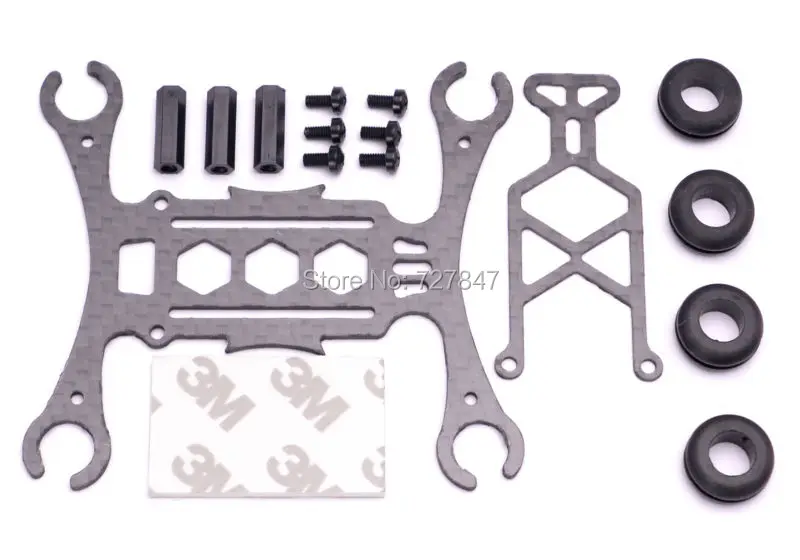

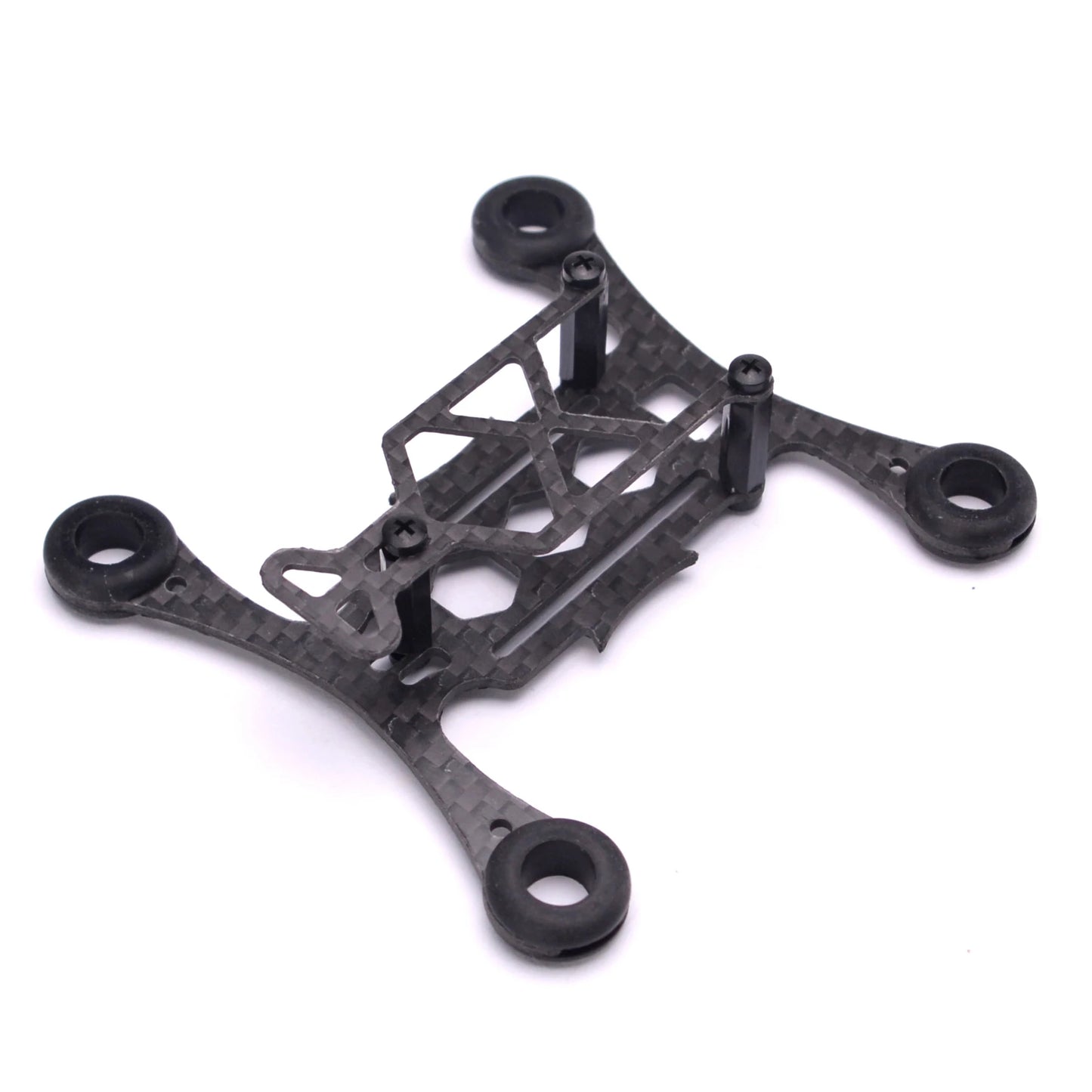

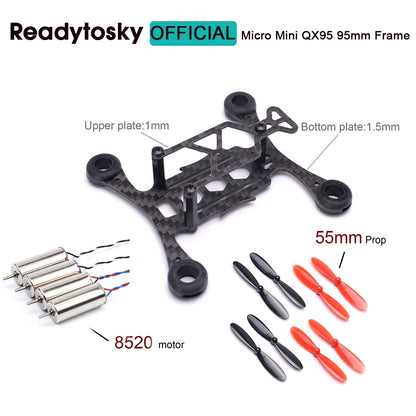

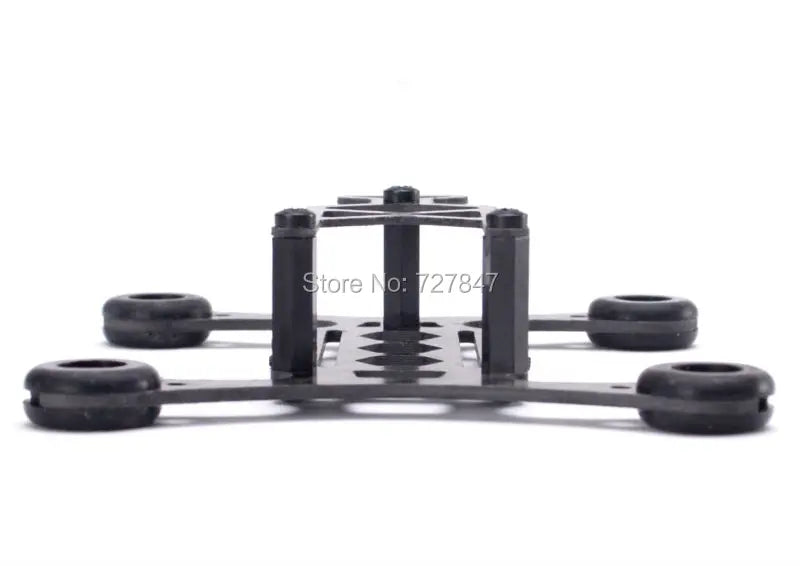

Micro Mini QX95 95mm Frame Mini FPV RC Carbon Fiber Quadcopter Frame Kit + 8520 Coreless Motor + 55mm Prop for FPV Indoor Frame
Micro Mini QX95 95mm Frame Mini FPV RC Carbon Fiber Quadcopter Frame Kit + 8520 Coreless Motor + 55mm Prop for FPV Indoor Frame
Couldn't load pickup availability

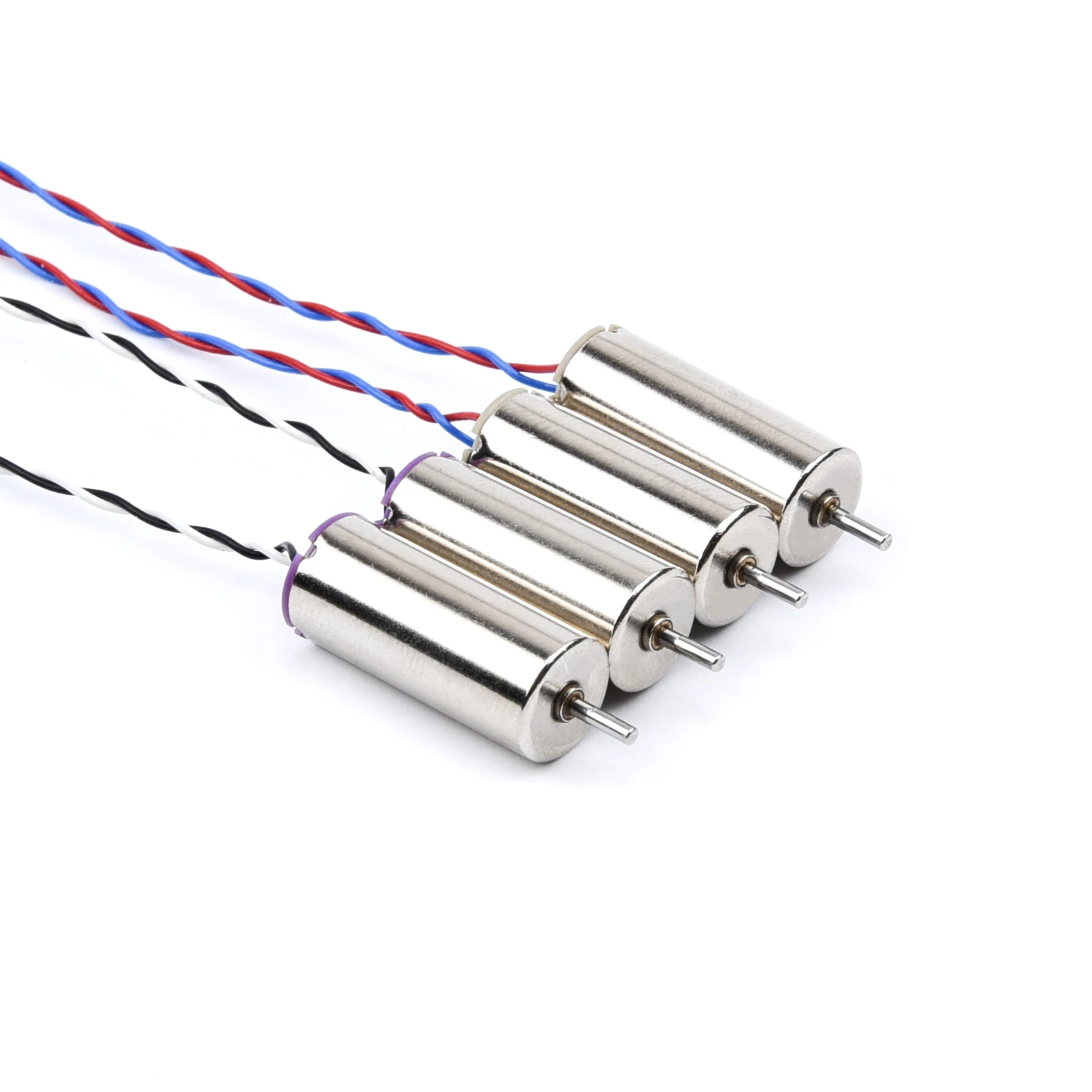

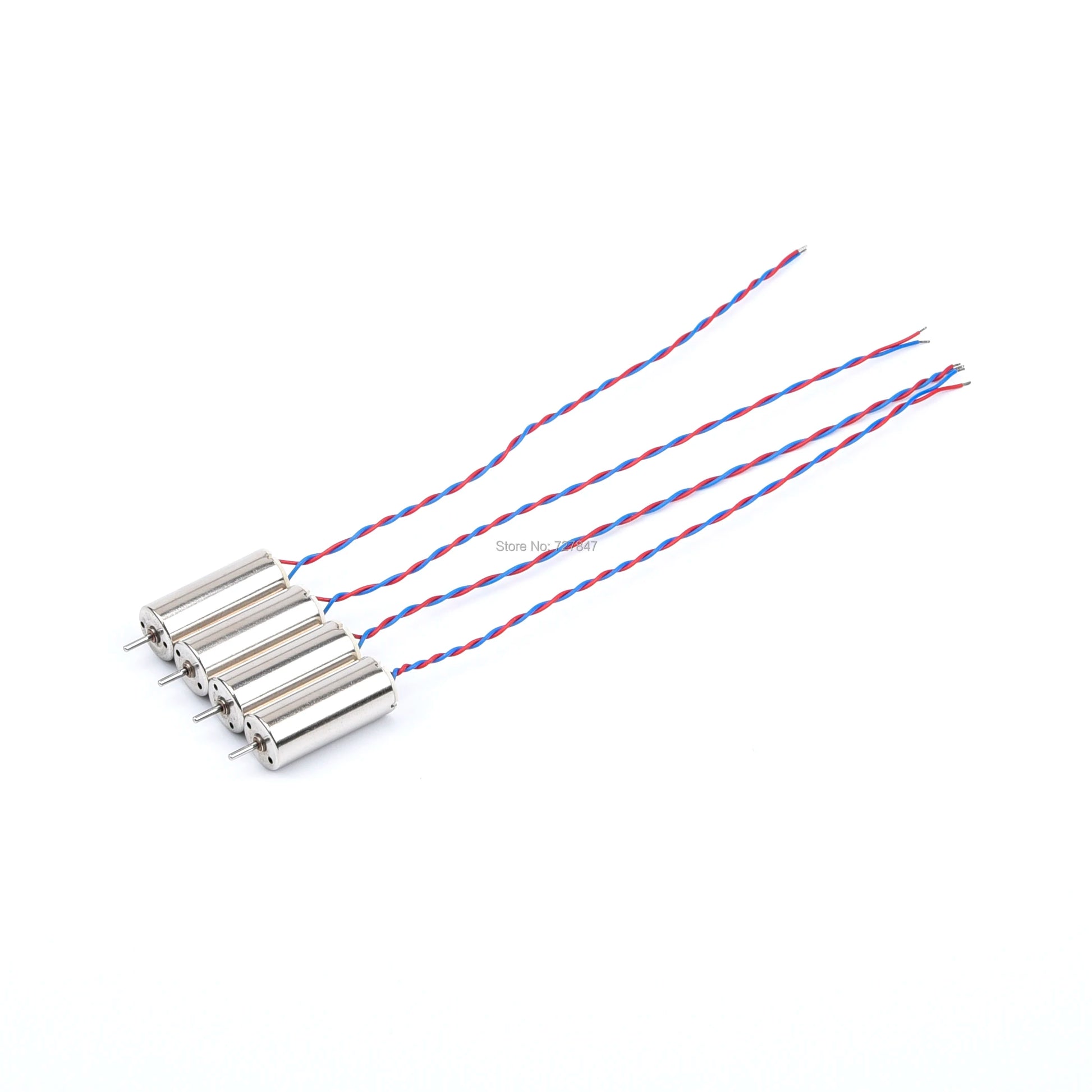

Motor Diameter: 8.5mm
Motor Length: 20mm
Shaft Diameter: 1.0mm
Cable Length: 60mm
Option: CW/CCW Motor
1.Operating condition
Rated voltage 3.2V DC
Direction of rotation CW CCW
Operating voltage range DC3.0-3.7V DC
perating temperature range -10-50°C
Motor position all position
2.Mearsuring condition
Motor position horizontal or vertical
Power supply regulated DC power supply assuring unquestionable measuring
regulated DC power supply assuring unquestionable measuring 10-30°C 30-95%
If the judgment is questionable,Measurent is to be made based on JIS Standard Testing Condition(20+2°C,65+5% )
Direction of rotation viewed from output shaft side
3.Electrical characteristics
Items Specification Standard value
Rated speed 39000rpm±12% 39000 rpm
Rated current 200mA max 150mA
Rated Load 30500rpm±10% 30500 rpm
Rated load current 1750mA max 1620mA
Starting voltage 1.0V max 0.8V DC
Insulation resistance 10MΩ
min AT 250V DC between
motor terminal and case
Mechanical noise
Under rated voltage 60 DB(A) max 53dB(A)
Cautions:
1) Please use the motor in this technology index range for the performance of the motor is affected by environmental temperature seriously.
2) It is not allowed to operate in the high temperature with high humidity, and not allowed to contact with corrosive liquid and corrosive gas,should not to be stored and without running Continuously for more than six months.
3) Do not lock the motor shaft while the electric is on. The motor will be burnt out after the motor shaft was locked for more then 1 second.
4) Do not hit the motor directly.
