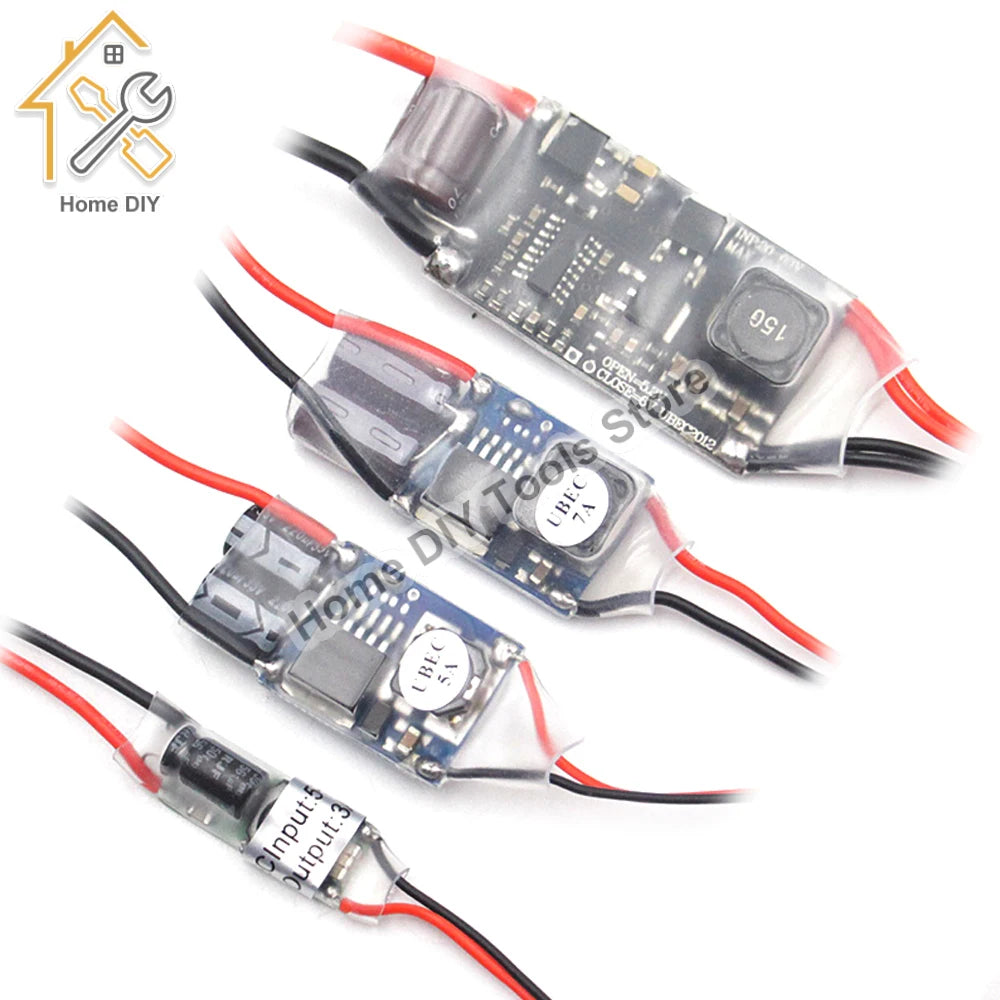

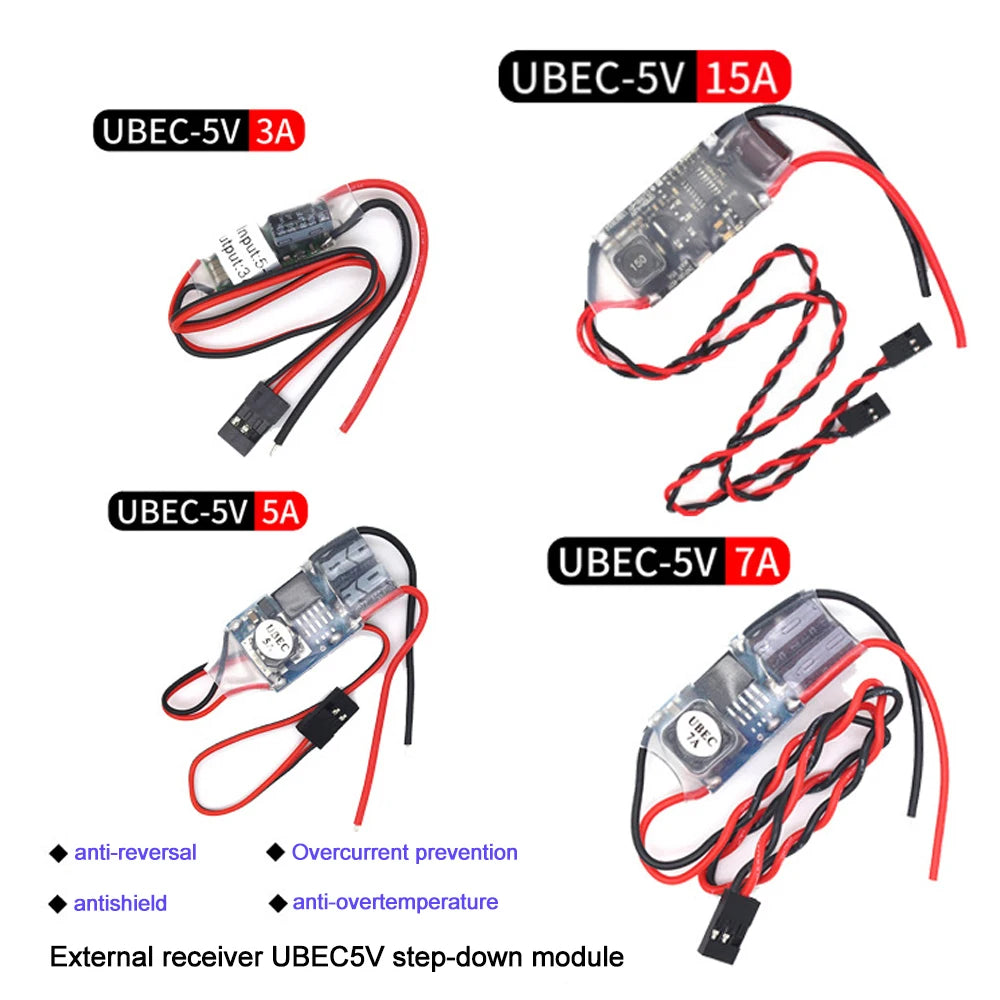

UBEC 3A /5A /7A /15A Lowest RF Noise BEC Full Shielding Antijamming Switching Regulator for RC quadcopter Multicopter
UBEC 3A /5A /7A /15A Lowest RF Noise BEC Full Shielding Antijamming Switching Regulator for RC quadcopter Multicopter
Couldn't load pickup availability
UBEC 3A /5A /7A /15A Lowest RF Noise BEC Full Shielding Antijamming Switching Regulator for RC quadcopter Multicopter

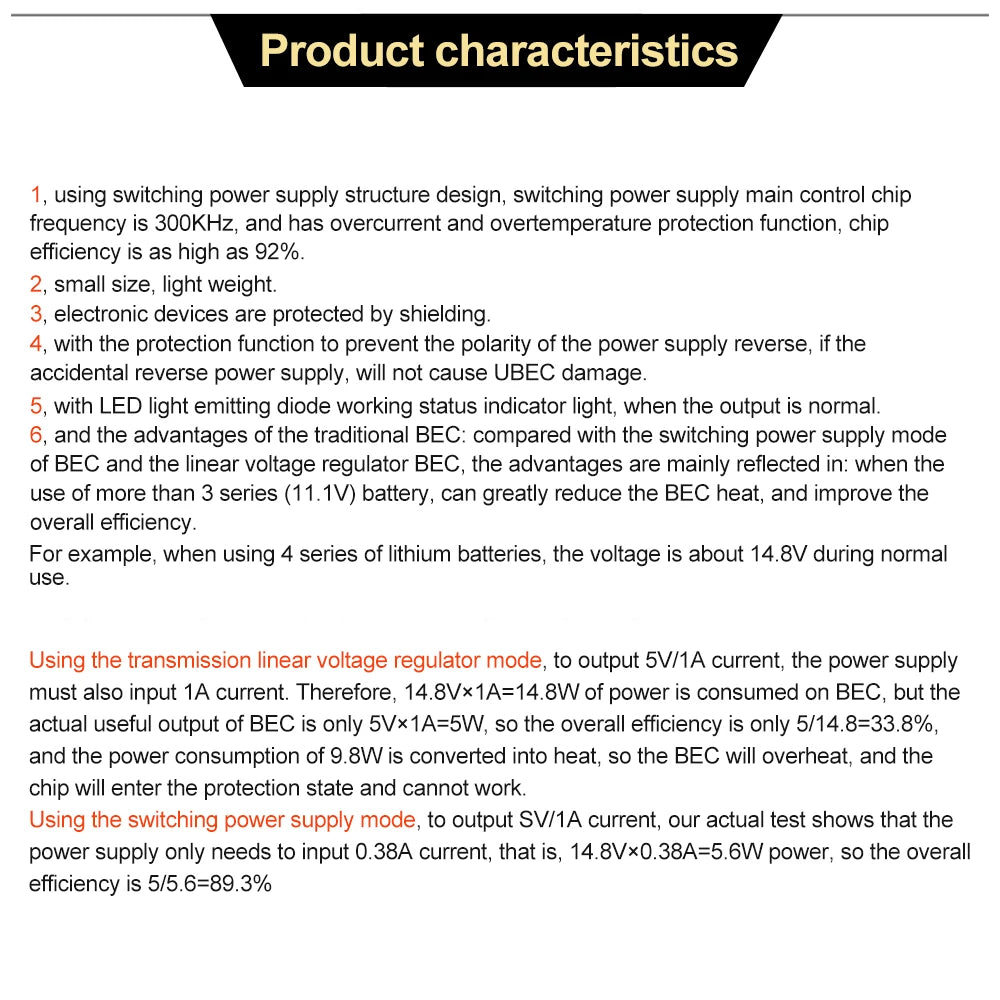

Description:
1.Adopting a switch power supply structure design, the main control chip frequency of the switch power supply is 300KHz, and it also has overcurrent and over temperature protection functions, with a chip efficiency of up to 92%
2.Compact size and light weight
3.Electronic devices are protected by shielding covers
4.It has a protective function to prevent the polarity of the power supply from being reversed. If the power supply is accidentally reversed, it will not cause damage to UBEC
5.Equipped with LED working status indicator light, which lights up when the output is normal.
6.Advantages compared to traditional BEC: Compared with BEC using a switch mode power supply and BEC using linear voltage regulation, the advantages mainly lie in: when using 3 series (11.1V) or more batteries, it can greatly reduce BEC heating and improve overall efficiency (for example, when using 4 series of lithium batteries, the voltage is about 14.8V during normal use)

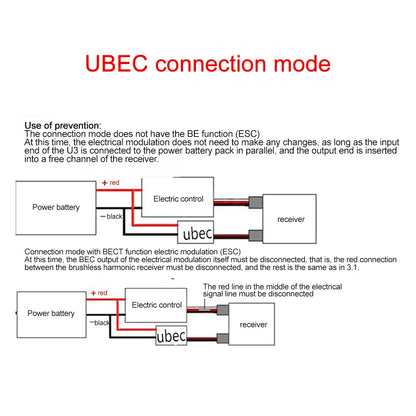

Product Overview: UBEC is an external DC voltage stabilization device that can operate in a switching and adjustable power supply mode. This UBEC can obtain DC voltage for receivers and other devices suitable for 2-12 lithium battery packs. It adopts dual parallel outputs, which can carry a large current and stably provide an output current of up to 15A. UBEC can easily power various devices on remote control models and is particularly suitable for large helicopters and large fixed wing aircraft that use multiple steering gears.
Parameters:

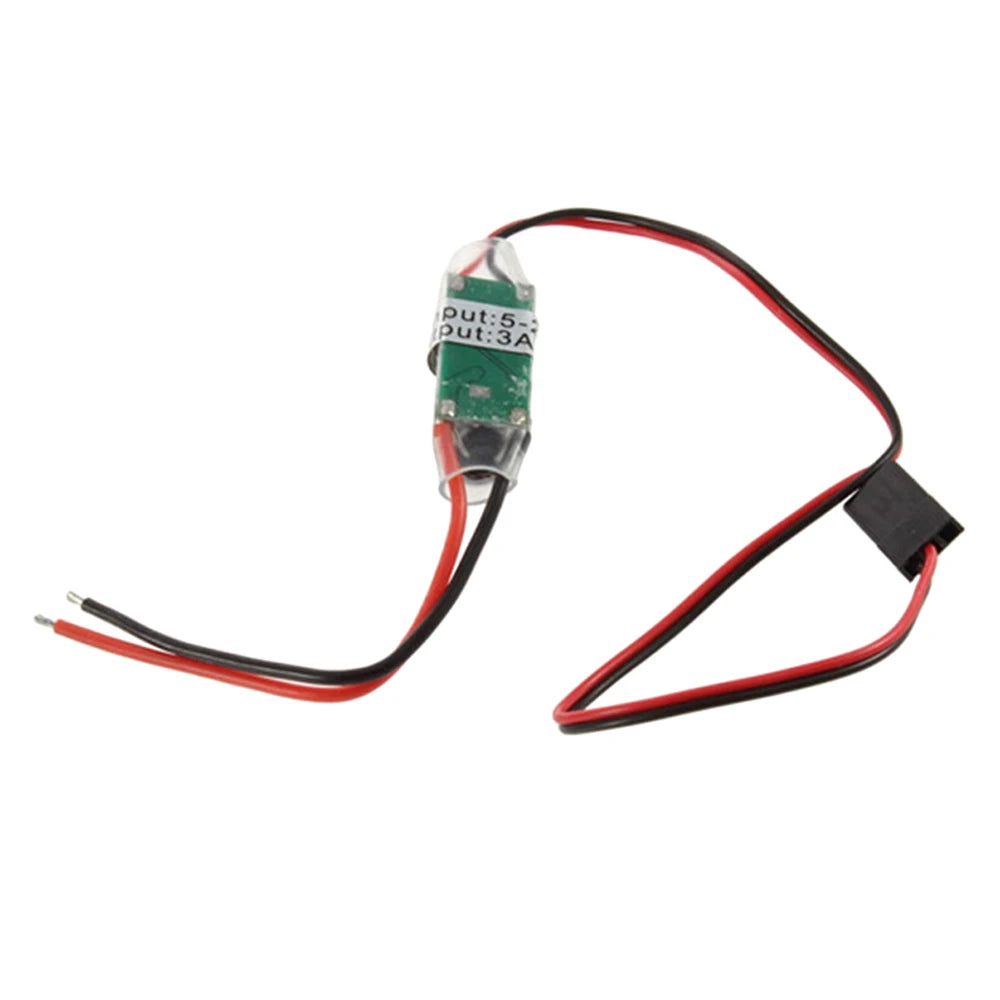

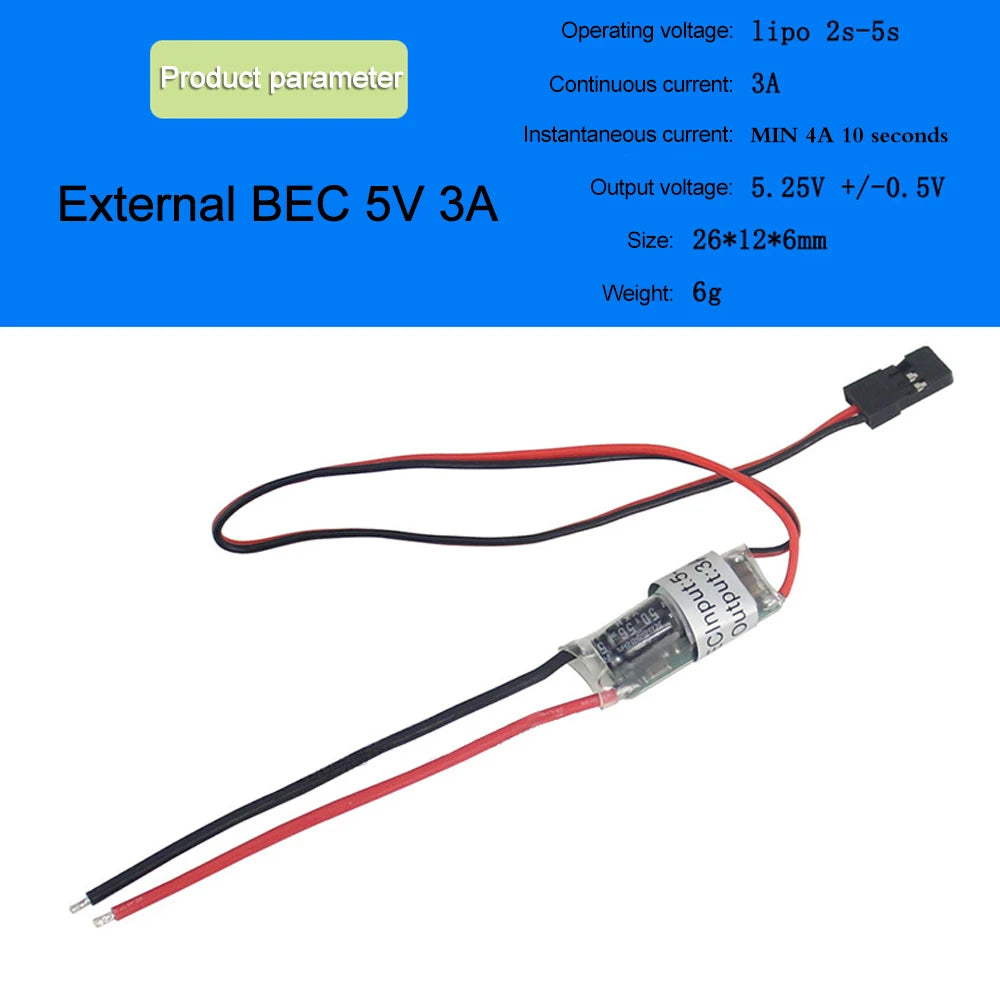

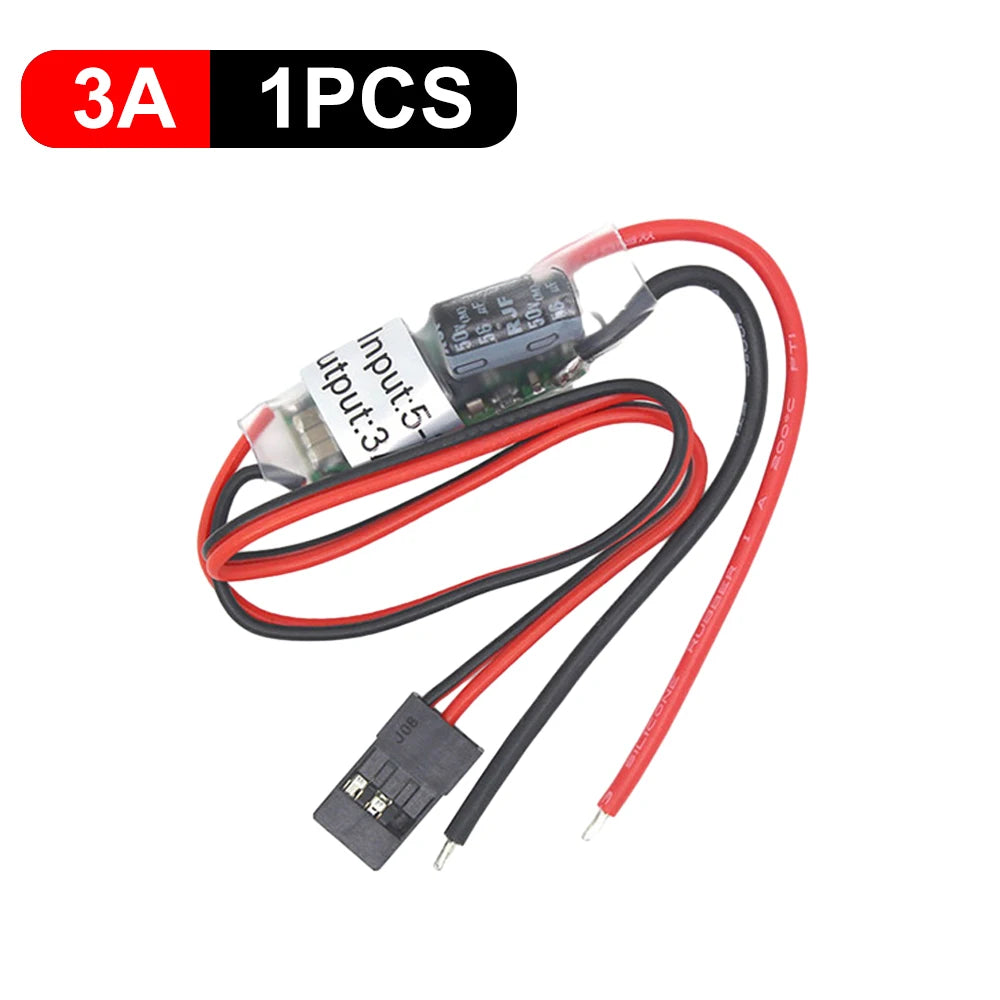

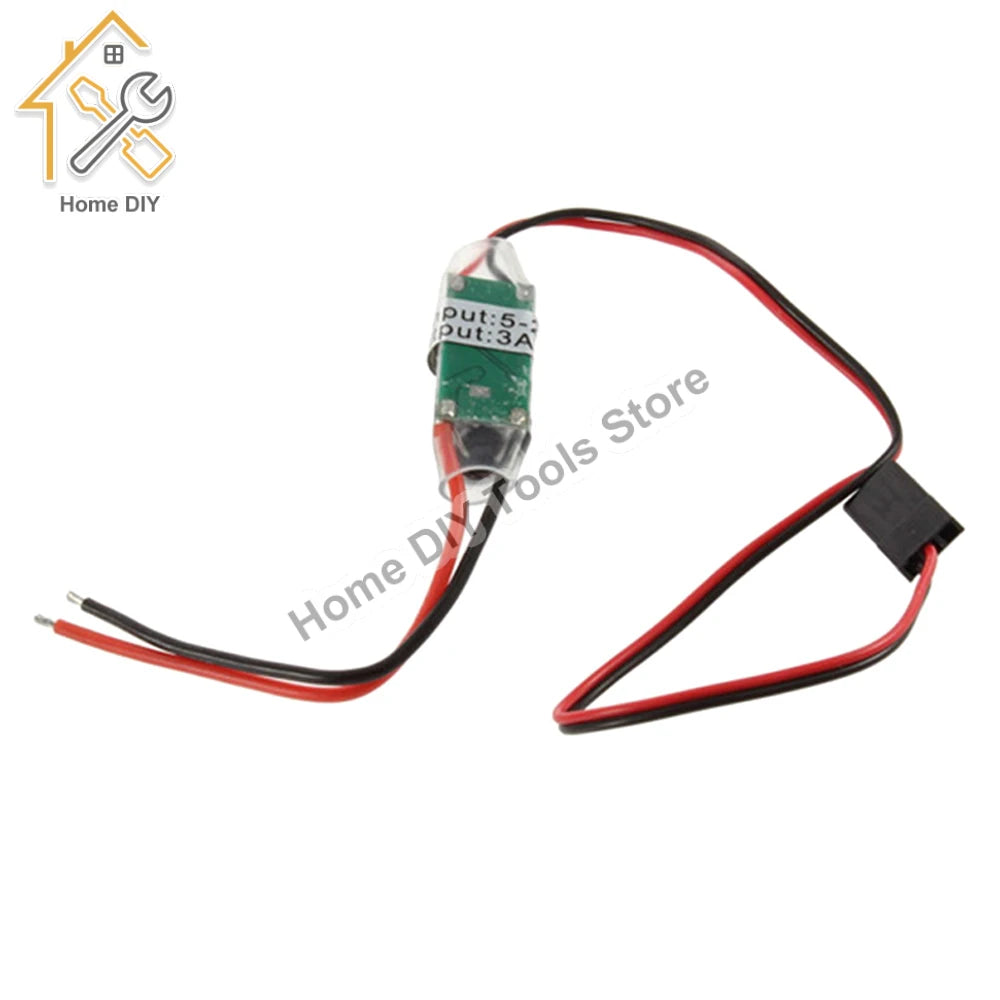

UBEC-3A
Working voltage: lipo 2S-5S
Continuous current: 3A
Instantaneous current: MIN 4A for 20 seconds
Output voltage: 5.25V+/-0.5V

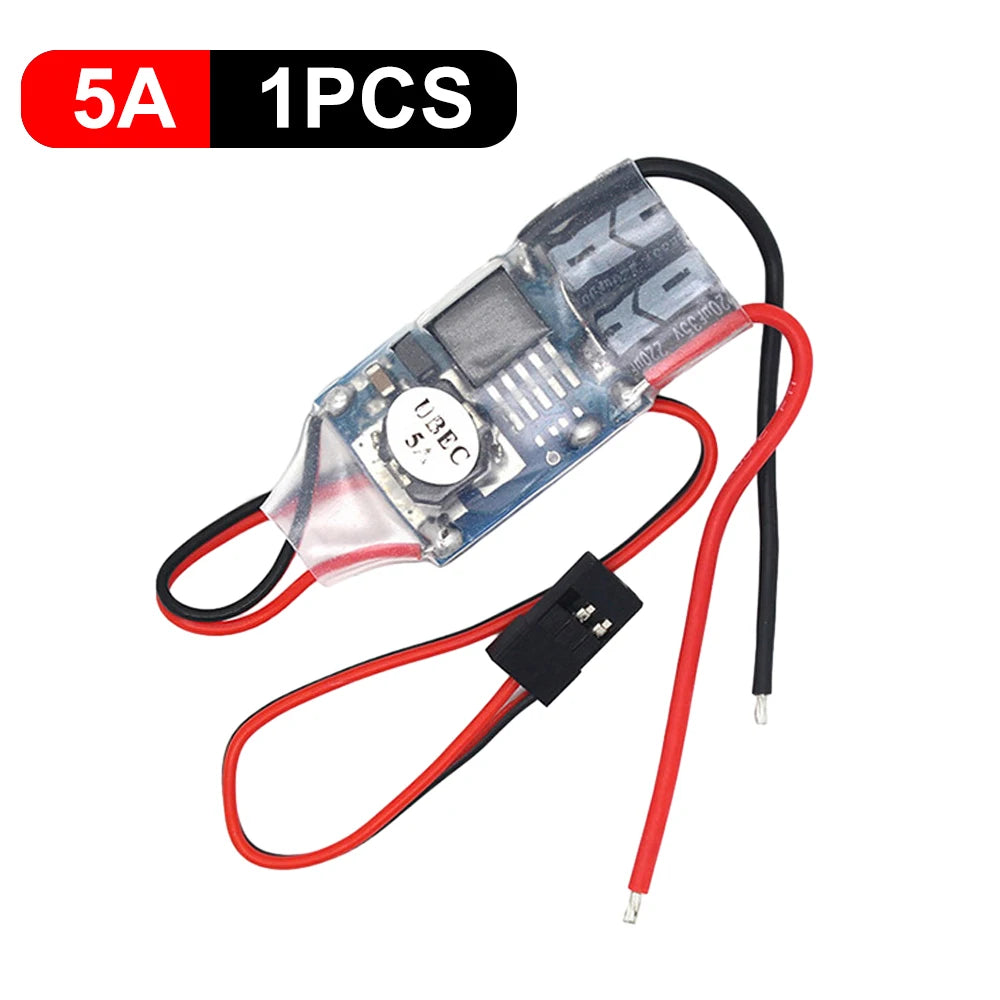

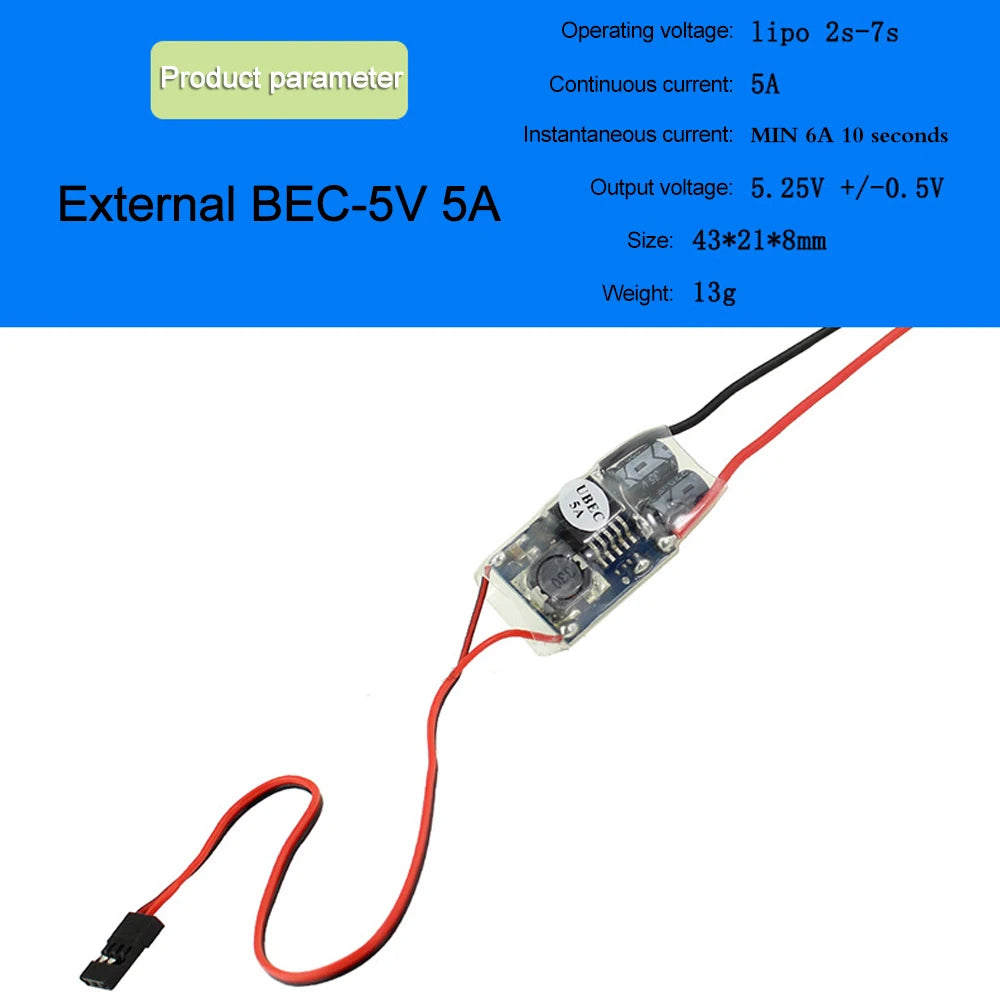

UBEC-5A
Working voltage: 5.5V-35V lipo 2S-7S
Continuous current: 5A
Instantaneous current: MIN 6A for 10 seconds
Output voltage: 5.25V+/-0.5V

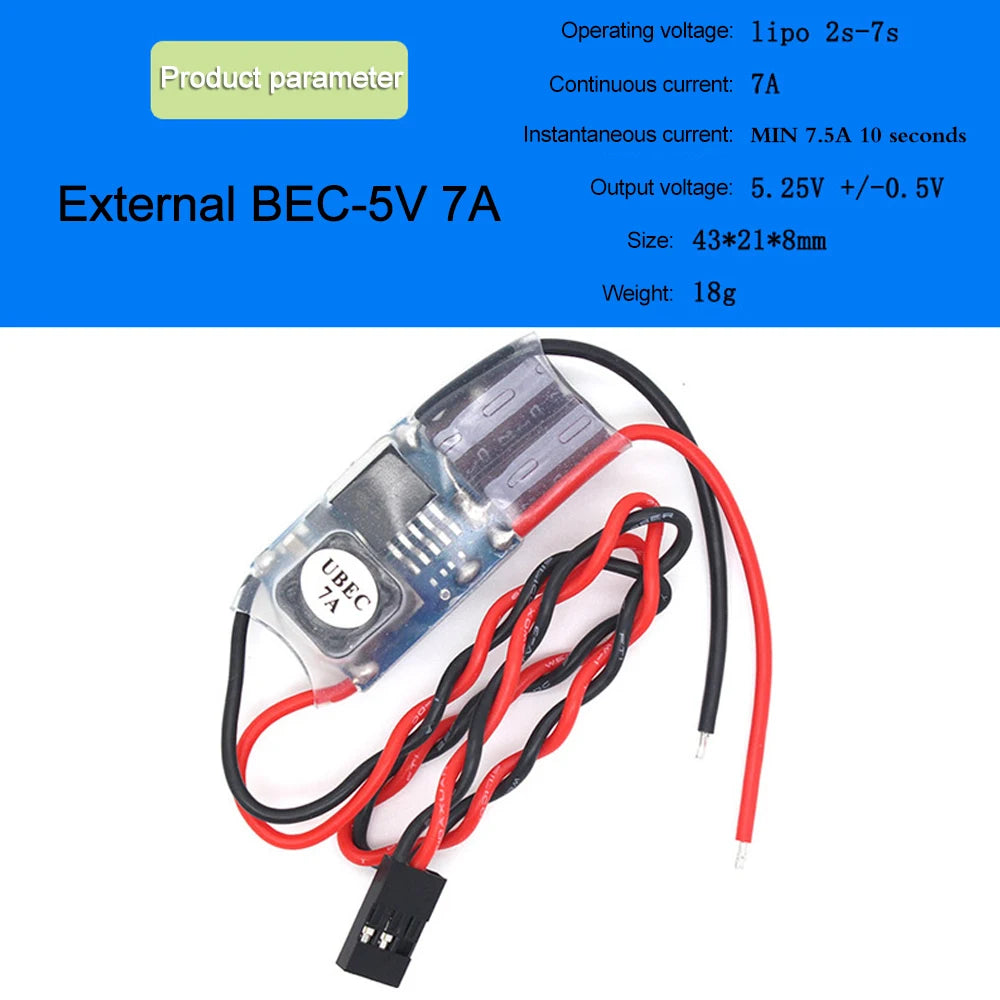

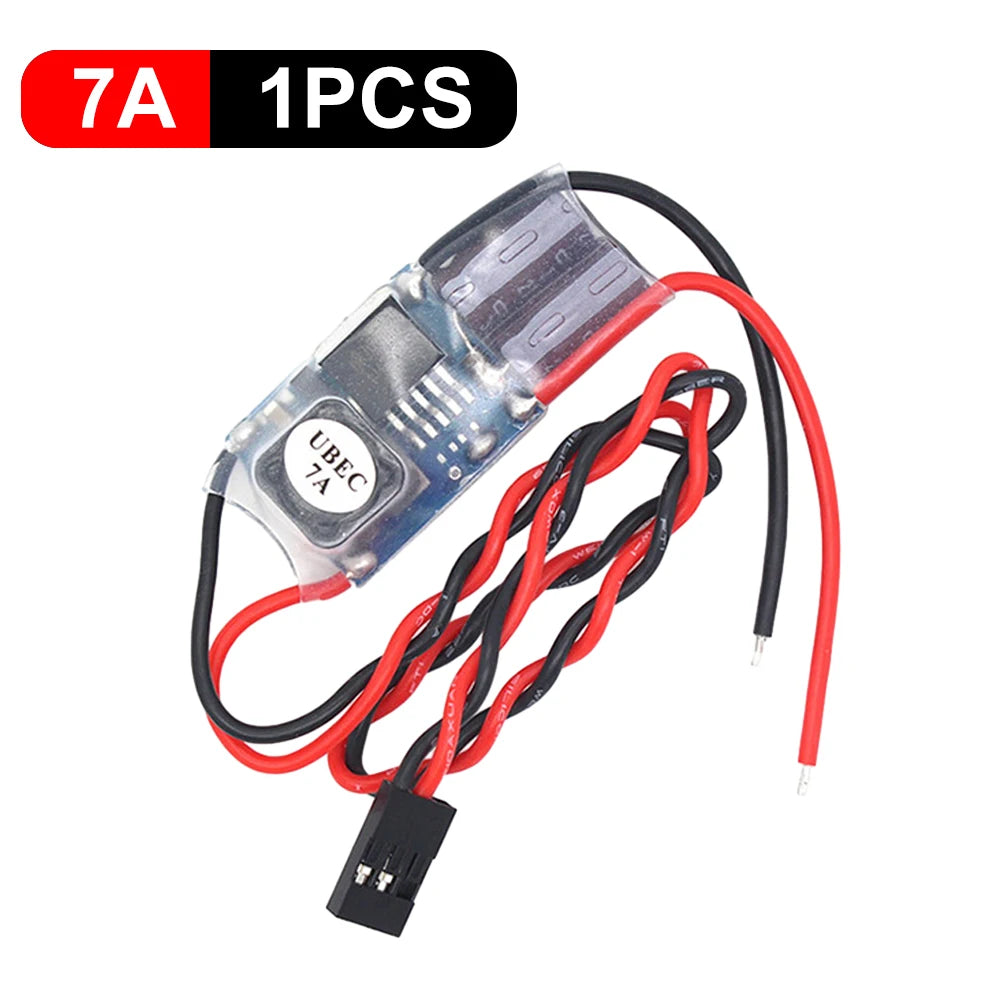

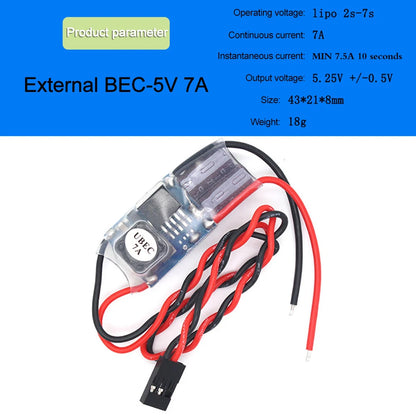

UBEC-7A
Working voltage: 5.5V-35V lipo 2S-7S
Continuous current: 7A
Instantaneous current: MIN 7.5A for 40 seconds
Output voltage: 5.25V+/-0.5V

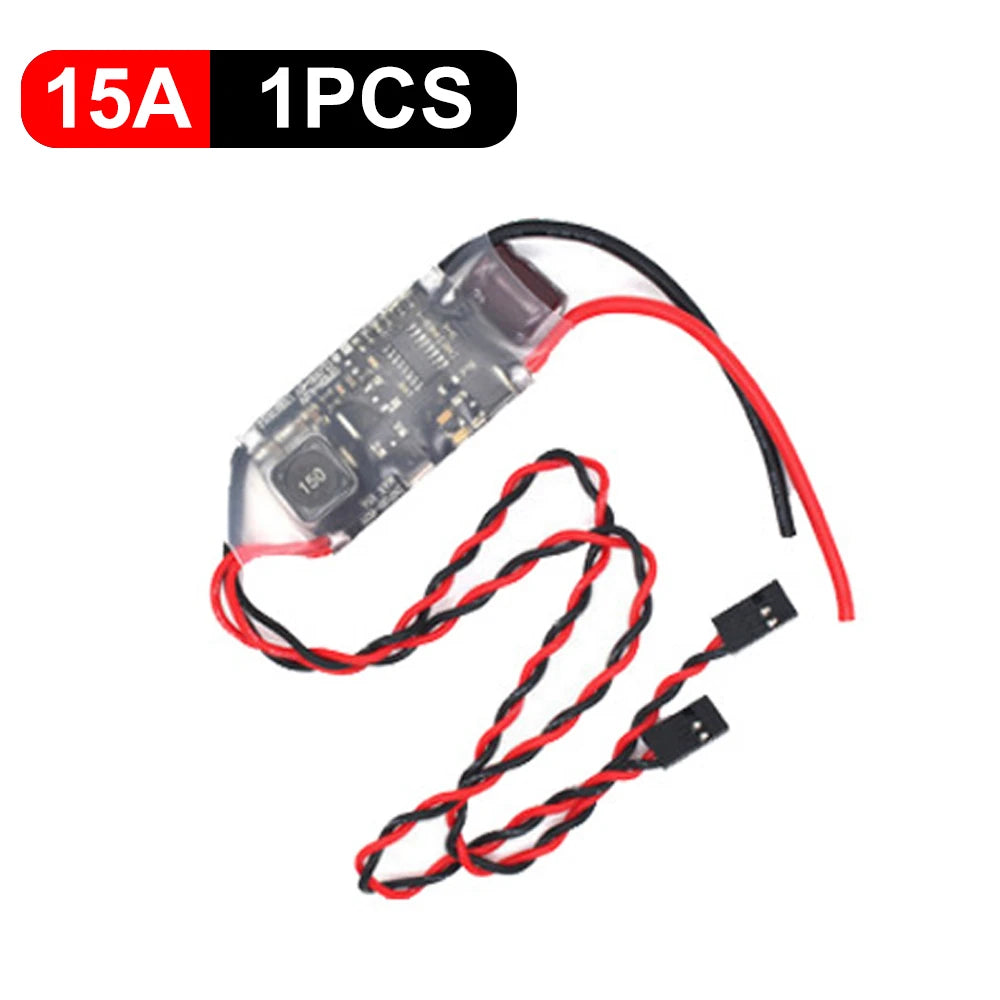

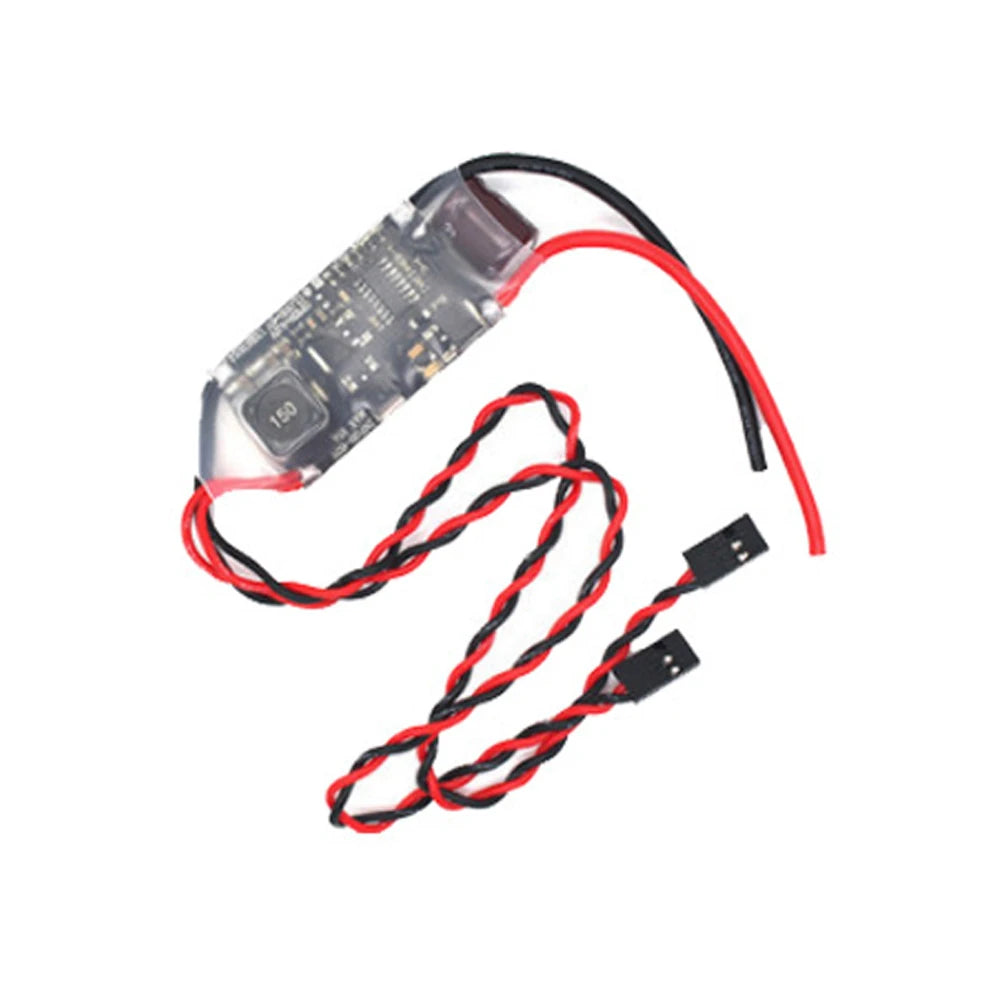

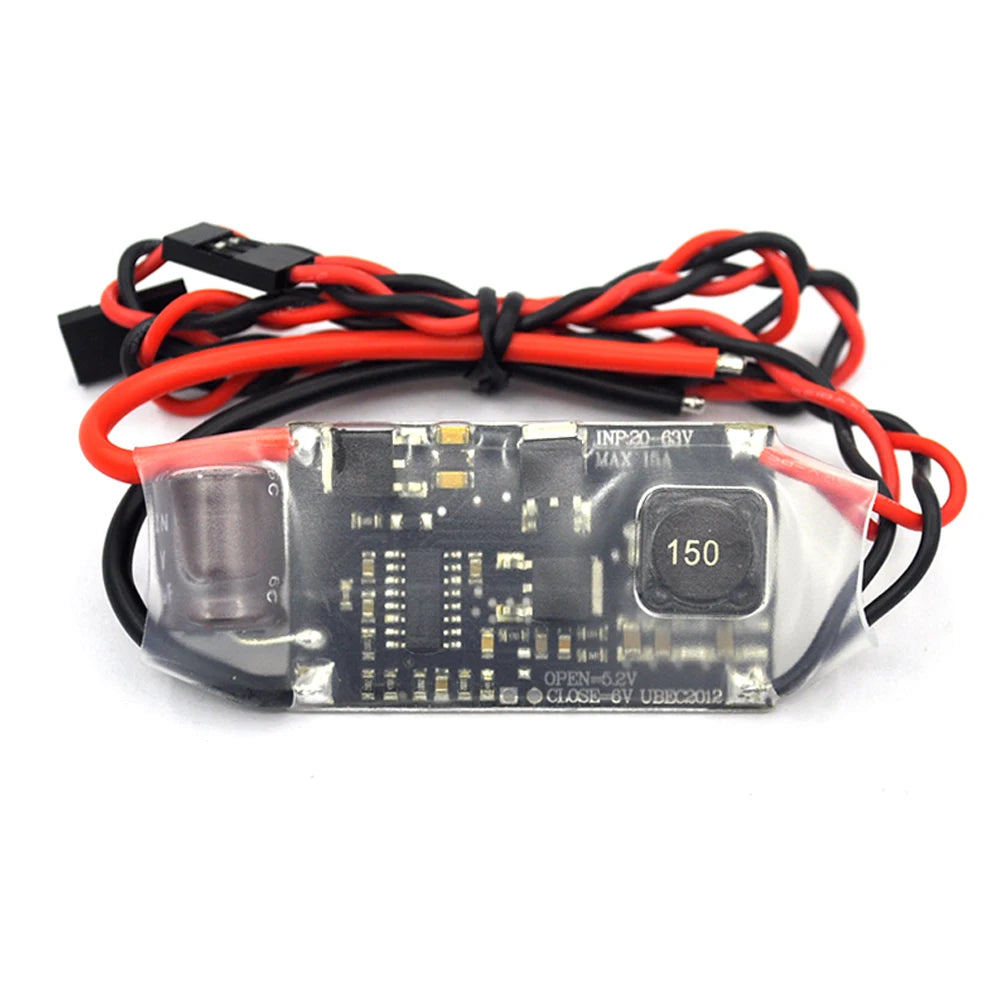

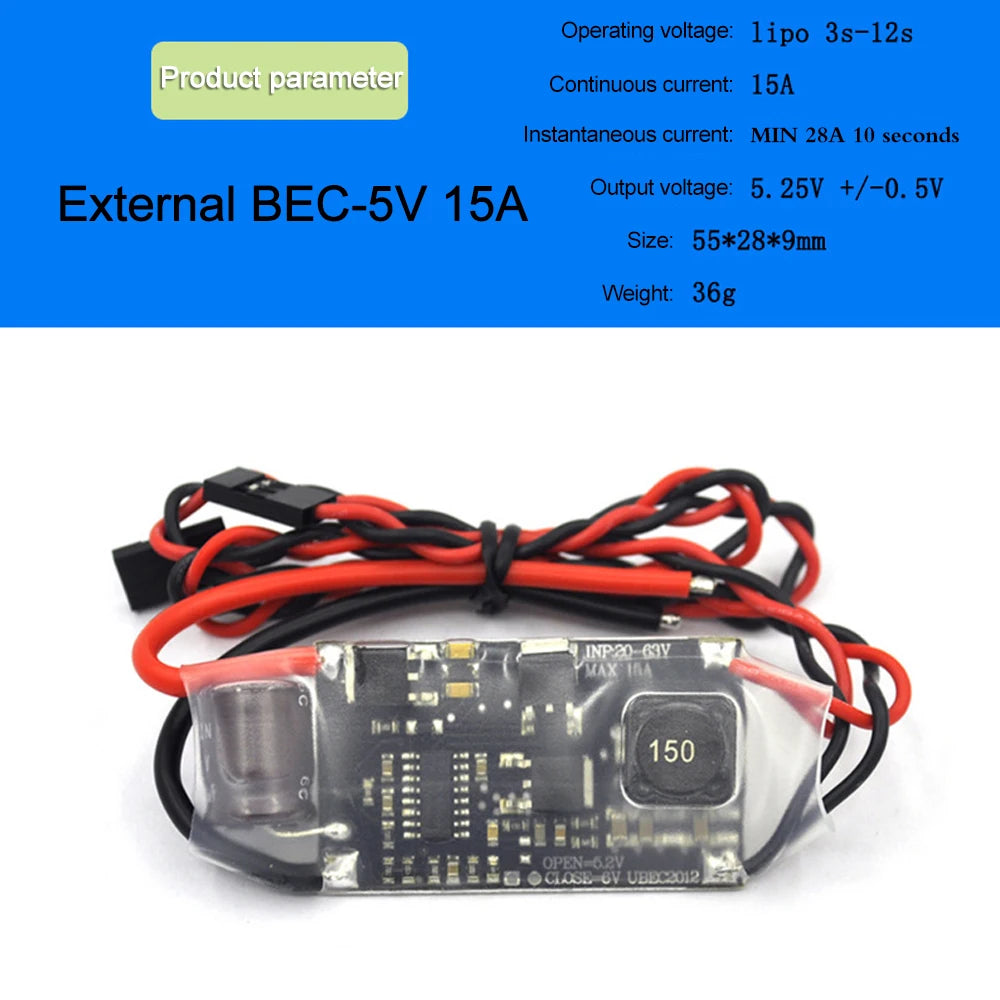

UBEC-15A
Working voltage: 3S-12S (23V-45V)
Continuous current: 15A
Instantaneous current: MIN 28A for 10 seconds
Output voltage: 5.25V+/-0.5V
Package include:
1pcs x Full Shielding Antijamming Switching Regulator
